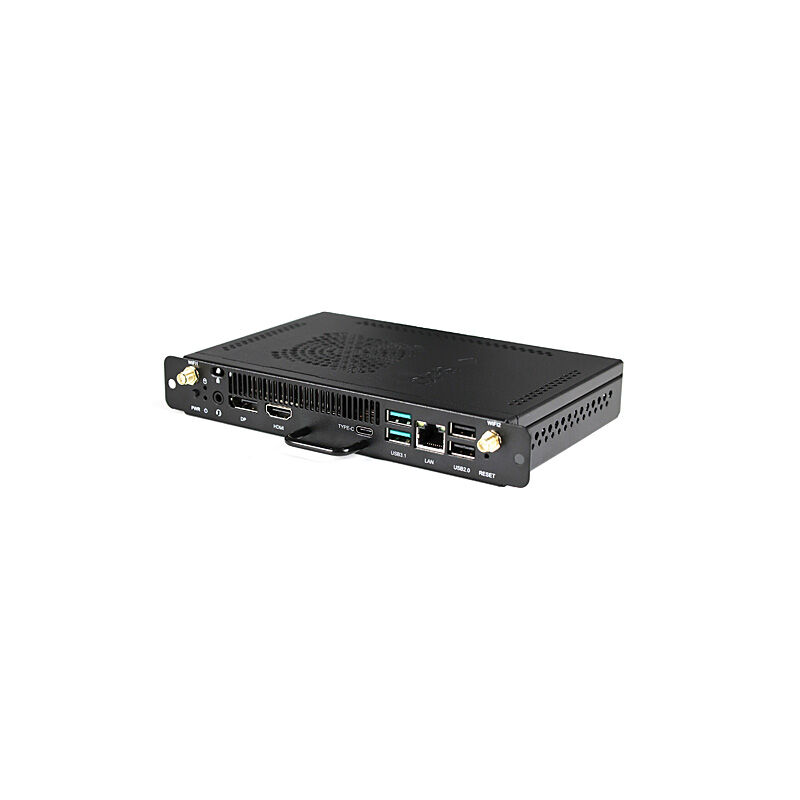

DAHUA i5 OPS for Whiteboard

.DAHUA i5 12th processor, 8GB + 256GB, Win 11 Pro activated

Features

• Intel® Alder Lake-H i5-12450H, 4.40GHz
• Intel® UHD Graphics for 12th Gen Intel® Processors
• 1 × 8GB DDR4 3200MHz
• 1 × 256GB 2280 SSD, Nvme/SATA
• 1 × 2230 PCIE/USB2.0, WIFI/BT Module
• 1 × HDMI 1.4, 1 × DP1.2, 2 × USB3.1, 2 × USB2.0, 1 × RJ45 10/100/1000M, 1 × USB3.1 Type-C

Specifications

Function

• Processor: Intel® Alder Lake-H i5-12450H, 4.40 GHz
• Chip: SOC
• BIOS: AMI UEFI BIOS
• Integrated Graphics Card: Intel® UHD Graphics for 12th Gen Intel® Processors
• Sound Card: Realtek ALC897
• Memory: 8 GB
• Disk: 256 GB
• Wireless: 1 × 2230 CNVI AX101, Wi-Fi/BT Module
• Button: Front, 1 × power button, 1 × resetting button (recessed socket)
• Operating System: Supports Windows 11 Pro or without any operating system

CPU Details

• Number of Cores: 8
• Number of Threads: 12
• Level 3 Cache: 12 MB

Device Ports

• Power: 1 × DC IN
• Network Port: 1 × RJ-45 (10/100/1000 Mbps)
• USB: 2 × USB 3.1, 2 × USB 2.0
• Type-C Port: 1 × USB 3.1 Type-C
• DP: 1 × DP1.2 out, Max. 4K/60 Hz
• HDMI: 1 × HDMI 1.4 out, Max. 4K/30 Hz
• Audio Port: 1 × Line-out and MIC-In, 2-in-1 connector
• Extension Interface: 1 × 80 pin JAE port

Power

• Operating Voltage: 12–19 VDC
• Standby Power Consumption: 0.8 W
• Power Consumption: Typ: 53 W; Max: 58.8 W

Environment

• Operating Temperature: –5 °C to +45 °C (+23 °F to +113 °F)
• Operating Humidity: 10%–90%, non-condensing
• Storage Temperature: –20 °C to +70 °C (–4 °F to +158 °F)
• Storage Humidity: 10%–90%, non-condensing

Structure

• Casing Material: SGCC
• Product Dimensions: 119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18")
• Packaging Dimensions: 254 mm × 196 mm × 77 mm (10.00" × 7.72" × 3.03")
• Net Weight: 0.75 kg (1.65 lb)
• Gross Weight: 0.95 kg (2.09 lb)
• Casing Color: Black

Accessory

• 2 × antennas
• 2 × M3 screws
• 1 × desiccant
• 1 × user's manual

Certifications

• Certifications: CE, Energy Star
