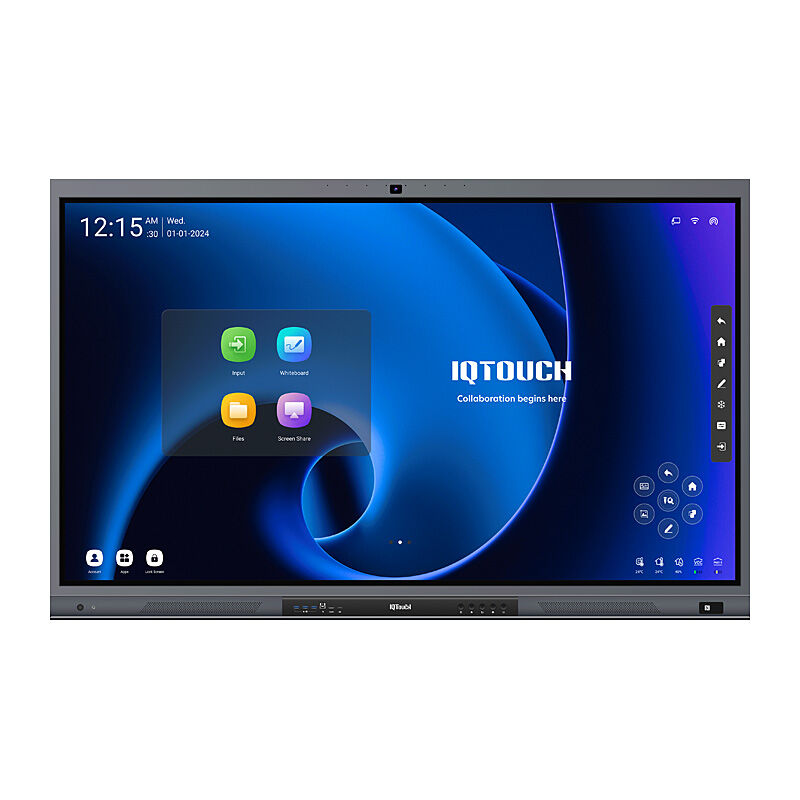

IQBOARD QA 1300 Pro 75”

.IQBOARD QA 1300 Pro 75”

Features

• The advanced Android 13 with IQ OS
• 4K AI Camera and 8-Microphone Array
• Precision Touch and Writing Enhancement
• Q Button Customization
• DMS Remote Control
• NFC Access Control
• Touch-Free Control and Health Monitoring

Specifications

Display

• Model: LE075MD
• Diagonal Size: 75"
• Brightness: 350 cd/m2
• Contrast Ratio: 1600:1
• Panel Type: TFT
• Backlight: Direct LED (DLED)
• Resolution: 4K UHD (3840×2160)
• Display Ratio: 16:9
• Response Rate: 8 ms (typ.)
• Refreshing Frequency: 60 Hz
• Viewing Angle: 178°(H), 178°(V)
• Backlight Life Time: 50,000 hrs
• Display Colors: 10bit(D), 1.07 Billion colors
• Glass: 4 mm Tempered Glass with Anti-Glare coating (8H)
• Dynamic Contrast Ratio: 5000:1

Interactivity

• Touch Technology: Infrared
• Touch Point: 40-point touch; 40-point writing under Windows; 20-point writing under Android
• Touch Resolution: 32768 × 32768 px
• Response Rate: <4 ms (single touch); <6 ms (max touch inputs)
• Touch Accuracy: ≤1 mm
• Recognition: Finger or pen
• Writing Height: 3 mm
• Minimum Touch Object: 2 mm
• Supported O.S.: HID Support & Win10/Win8/Win7/Mac OS/Android/Chrome OS/Linux

Physical Specifications

• Net Weight: 56 Kg±1.5 Kg
• Gross Weight: 70 Kg±1.5 Kg
• Product Size (mm) (W × H × D): 1723 × 1055 × 87
• Packing Size (mm) (W × H × D): 1800 × 1125 × 200
• VESA Hole: 4-M8 screw
• Position hole (mm): 600 × 400

Environmental

• Working Temperature: 0°C ~ 40°C
• Storage Temperature: -20°C ~ 60°C
• Working Humidity: 20% ~ 80% RH Non-Condensing
• Storage Humidity: 20% ~ 90% RH Non-Condensing

Power

• Voltage: 100V~240V AC 50 / 60Hz
• Maximum Power: ≤400W
• Standby Power: ≤0.5W

Front Buttons

• POWER, HOME, BACK, SETTING, CUSTOM

IQTouch QA1300 Pro Specifications

• Air sensors: Temperature, Humidity, VOC, PM2.5
• Language OSD: English, French, German, Russian, Japanese, Korean, Polish, Portuguese, Vietnamese, Spanish, Italian, Arabic, Simplified Chinese, Traditional Chinese

Android

• CPU Framework: Cortex-A73*4 + Cortex-A53*4
• CPU Processor Speed: 2.2GHz
• GPU: Arm Mali-G52 MP8 (8EE)
• RAM: 8G
• ROM: 128G
• OS Version: 13.0
• Hotspot: IEEE 802.11 a/b/g/n/ac, IEEE 802.1x, WPA2, station mode (2.4G/5G Dual-band)
• Bluetooth: 5.2
• NFC: YES
• WiFi: IEEE 802.11 a/b/g/n/ac/ax, IEEE 802.1x, WPA2, Wi-Fi6, station mode (2.4G/5G Dual-band)

OPS (Optional)

• Chipset: Intel
• CPU: Intel® Core i3/i5/i7
• Memory: 4GB/8GB/16GB
• HDD: 500GB/1TB
• SSD (optional): 128GB/256GB/512GB

OPS Interfaces (Subject to model)

• USB2.0: 2
• USB3.0: 2
• LAN: 1
• HDMI: 1
• LINE-OUT: 1
• MIC-IN: 1

Connectivity

• Front USB (Android&PC) 3.0: 3
• HDMI IN 2.0: 1
• Touch-USB: 1
• TYPE-C (USB2.0&Video&Audio&Touch&65W): 1
• RJ45 (10/100/1000 Mbit/s): 1
• HDMI 2.0 (4K@60fps): 2
• TYPE-C (USB2.0&Video&Audio&Touch&65W): 1
• USB2.0 (Android) Type-A: 2
• USB3.0 (Android&PC) Type-A: 2
• USB2.0 (for Touch) Type B: 2
• USB2.0 (OTG): 1
• TF Card: 1
• MIC IN: 1
• RS232: 1
• DP: 1

Output

• HDMI 2.0 (4K@60fps): 1
• COAX SPDIF OUT: 1
• EARPHONE (3.5 mm Line Out): 1
• RJ45 (10/100/1000 Mbit/s): 1

Built-in Camera

• 48M (Built-in 4K AI Camera with Auto Framing & Voice Tracking)

Array Microphone

• YES (8 Array microphone)

Built-in Speaker

• 20W*2 + 20W

Light Sensitivity

• YES

Temperature Monitor

• YES

Proximity Sensor

• YES
