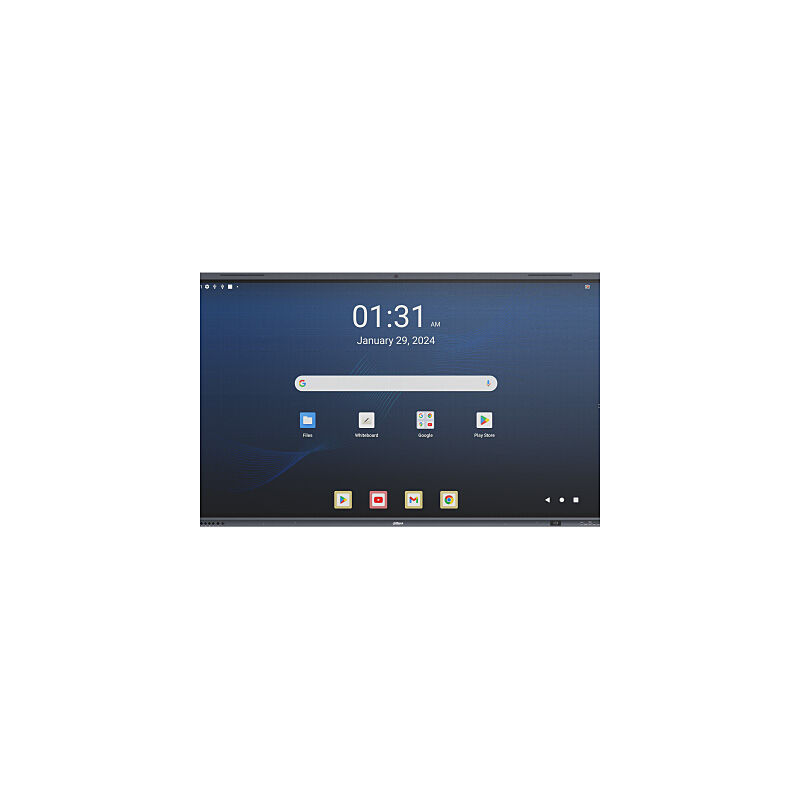

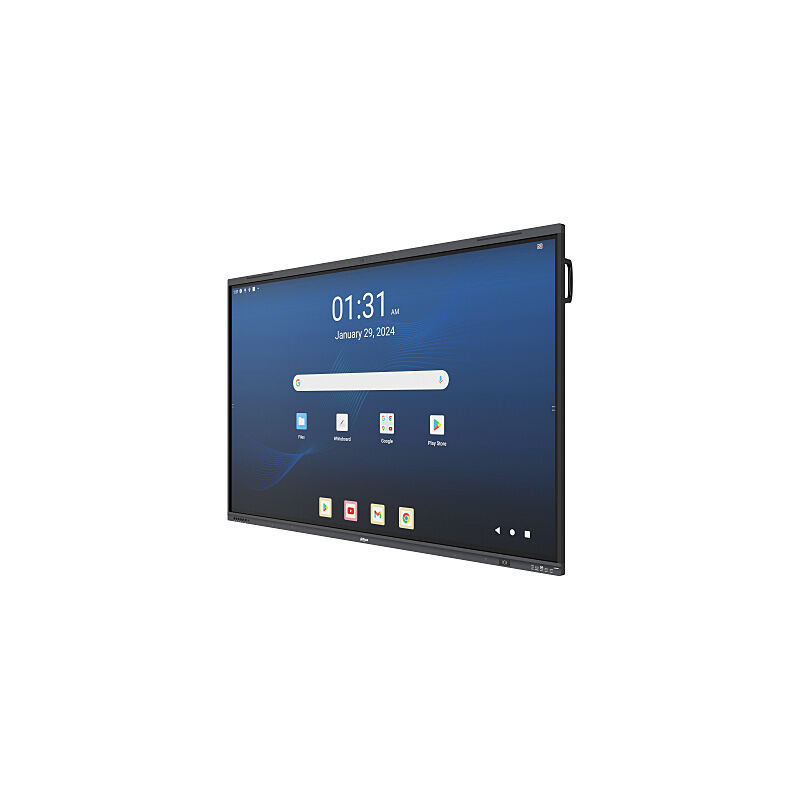

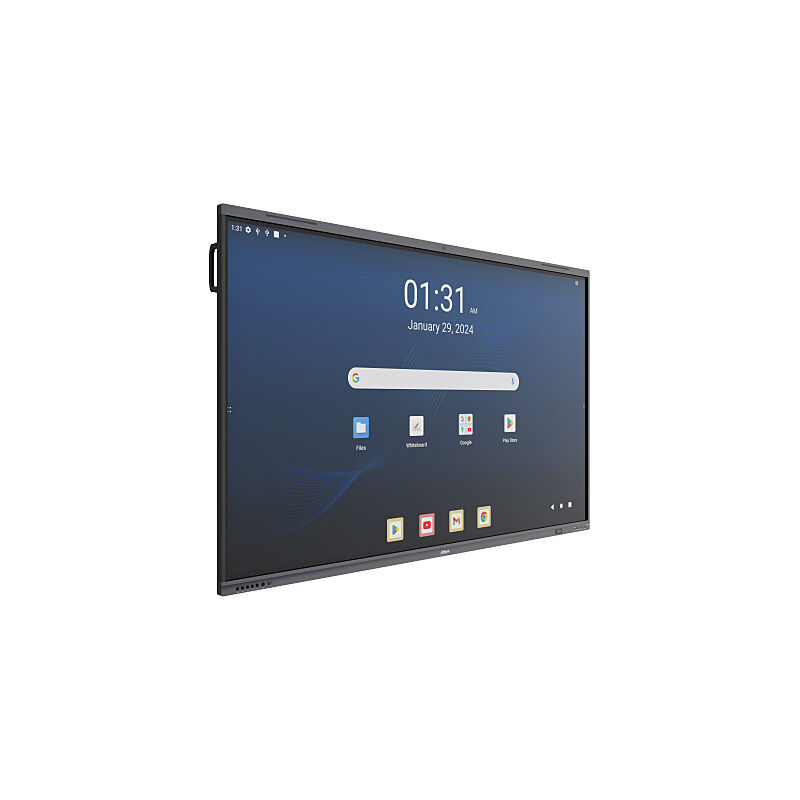

DAHUA 86” UHD Pro Whiteboard

.DAHUA 86” UHD Pro Series Smart Interactive Whiteboard with Built-in Camera; Google Series

Features

• Displays in 4K Ultra HD and uses 4K UI
• Features split screen and performs screen sharing between the whiteboard and phones, computers, tablets, and more devices
• Microsoft Office and other related software can be installed, and it can play audio and video files in various formats
• Offers a smooth writing experience through handwriting recognition, pen writing, fast writing response speed, and pen pressure recognition for a real writing experience
• Intelligent text
• Intelligent pen detection that automatically wakes up the whiteboard for annotations when the pen is lifted; built-in 48M camera and 8-array microphone design
• Features sound source positioning
• Offers NFC
• Includes a full-featured Type-C IN port and supports charging through USB PD up to 100 W
• With its 2 built-in mid-high frequency speakers and 2 low-frequency speakers, the device emits sound from its top and supports 2.2-channel audio output
• Produces vibrant visuals through its high color coverage, low blue light emission, and accurate color reproduction
• Optional OPS module, dual-system switchable

Specifications

Built-in System

• Main Processor: RK3588
• Operating System: Android 15
• CPU: Quad-core A76 + Quad-core A55
• CPU Frequency: 2.4 GHz
• GPU: Mali-G610 MP4
• RAM: 8 GB
• ROM: 128 GB

General

• Operating System of External Module: Windows 7/8/10/11
• Power Supply: 100–240 VAC, 50/60 Hz, 6.5 A
• Power Consumption: 320 W (typ.); 650 W (max.)
• Standby Power Consumption: ≤0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity: 10%–90% RH
• Storage Humidity: 10%–90% RH
• Product Material: Metal
• Glass: 3.2 mm anti-glare tempered glass
• Casing Color (Frame/Rear): Black
• Product Dimensions: 1,957.1 mm × 1,178.6 mm × 98.5 mm (77.05″ × 46.40″ × 3.88″)
• Frame Size: U: 33.3 mm, L/R: 14.6 mm, D: 43.0 mm (U: 2.42″, L/R: 0.69″, D: 1.11″)
• Packaging Dimensions: 2,110.0 mm × 225.0 mm × 1,304 mm (83.07″ × 8.86″ × 51.34″) (L × W × H)
• Net Weight: 64.38 kg (141.94 lb)
• Gross Weight: 77.60 kg (171.08 lb)
• Holes Distance: 800 mm × 600 mm (31.50″ × 23.62″)
• Installation: Wall mount or mobile bracket

Packing List

• Power cord × 1
• Smart interactive whiteboard × 1
• Stylus pen × 2
• Wall mount bracket × 1
• Remote control × 1
• Pack of wall mount screws × 1
• Wireless plug-in module × 1
• Quick start guide × 1
• Legal and regulatory information × 1

LCD Panel

• Screen Size: 86 inch
• Backlight: DLED
• Aspect Ratio: 16:9
• Brightness: 400 cd/m² (typ.)
• Static Contrast Ratio: VA: 5000:1 (typ.); IPS: 1200:1 (typ.)
• Resolution: 3,840 (H) × 2,160 (V)
• Viewing Angle: 178° (H) / 178° (V)
• Lifespan: ≥50,000 hrs
• Display Color: 1.07 Billion (10 bits)
• Color Gamut: 90% NTSC
• Response Time: 8 ms
• Refresh Rate: 60 Hz

Camera

• Android: Photo: 48 MP; Video: 8 MP
• Windows: Photo: 8 MP; Video: 8 MP
• Field of View: H: 98°; D: 106°

Device Ports

• Light Sensor: Yes
• Front Button: 6 buttons (Power supply, menu, signal source, curtain, volume, annotation)
• Front Ports:
  • 2 × USB 3.2 Gen1 Type-A
  • 1 × HDMI IN
  • 1 × USB Type-C IN (100 W fast charge, data transmission, LAN)
  • 1 × Touch USB 2.0 Type-B
• Rear Ports:
  • 3 × HDMI IN (4K@60 Hz)
  • 1 × HDMI OUT (4K@60 Hz)
  • 1 × DP IN
  • 1 × USB 2.0 Type-A
  • 2 × USB 3.2 Gen1 Type-A
  • 1 × USB Type-C IN (15 W max charge, audio/video/data/network)
  • 1 × USB Type-C OUT (4K@60 Hz)
  • 2 × TOUCH USB 2.0 Type-B (touch + 100 Mbps network sharing)
  • 1 × AUDIO IN (3.5 mm)
  • 1 × AUDIO OUT (3.5 mm)
  • 1 × SPDIF
  • 1 × RS232
  • 1 × RJ45 IN (10/100/1,000 Mbps)
  • 1 × RJ45 OUT (10/100/1,000 Mbps)

Wireless

• Wi-Fi: Yes
• Wi-Fi Standard: 802.11b/g/n/a/ac/ax (Station); 802.11b/g/n/a/ac (AP)
• Wi-Fi Frequency Range:
  • 2400–2483.5 MHz
  • 5150–5250 MHz
  • 5250–5350 MHz
  • 5470–5725 MHz
  • 5725–5850 MHz
• MAX Power Transmission (Wi-Fi):
  • ≤20 dBm @ 2400–2483.5 MHz
  • ≤23 dBm @ 5150–5250 MHz
  • ≤20 dBm @ 5250–5350 MHz
  • ≤27 dBm @ 5470–5725 MHz
  • ≤14 dBm @ 5725–5850 MHz
• Bluetooth: Yes
• Bluetooth Standard: BT5.2 BR/EDR/BLE
• Bluetooth Frequency Range: ≤20 dBm @ 2400–2483.5 MHz
• MAX Power Transmission (Bluetooth): ≤20 dBm
• RFID Modulation Method: ASK
• RFID Frequency Range: 13.56 MHz
• MAX Power Transmission (RFID): 13.56 MHz: ≤42 dBuA/m @ 10 m

Function

• IR Receiver: 1
• Card Swiping with NFC: Yes
• Wireless Access Point: Wi-Fi 5, 2.4 GHz & 5 GHz dual band, 802.11 ac/n

Touchscreen

• Response Time: ≤2.0 ms
• Touch Technology: Infrared
• Attachment Method: Zero Air Gap
• Touch Points: Android: 32 points; Windows: 50 points
• Touch Accuracy: ±0.5 mm (≥90% touching area)
• Valid Touch: ≥1.5 mm (0.06″) (≥90% touching area)
• Touch Height: ≤0.99 mm (average)
• Writing Mode: Finger and stylus pen (magnetic)
• Communication Mode: USB
• Anti-light Interference: Anti-glare tempered glass
• Surface Hardness: ≥9H
• Touch Resolution: 32,768 × 32,768

Speaker

• Built-in Speaker: 4 (CH2.2)
• Power: 2 × 8 W + 2 × 18 W
• Frequency: 150 Hz–20 kHz

Microphone

• Microphone: 8
• Pick-up Distance: 0 m–12 m (0 ft–39.37 ft)
• AGC: Yes
• Echo Cancellation: Yes
• Intelligent Noise Filtering: Yes

Certification

• Certifications: CE, EDLA, Energy Star
