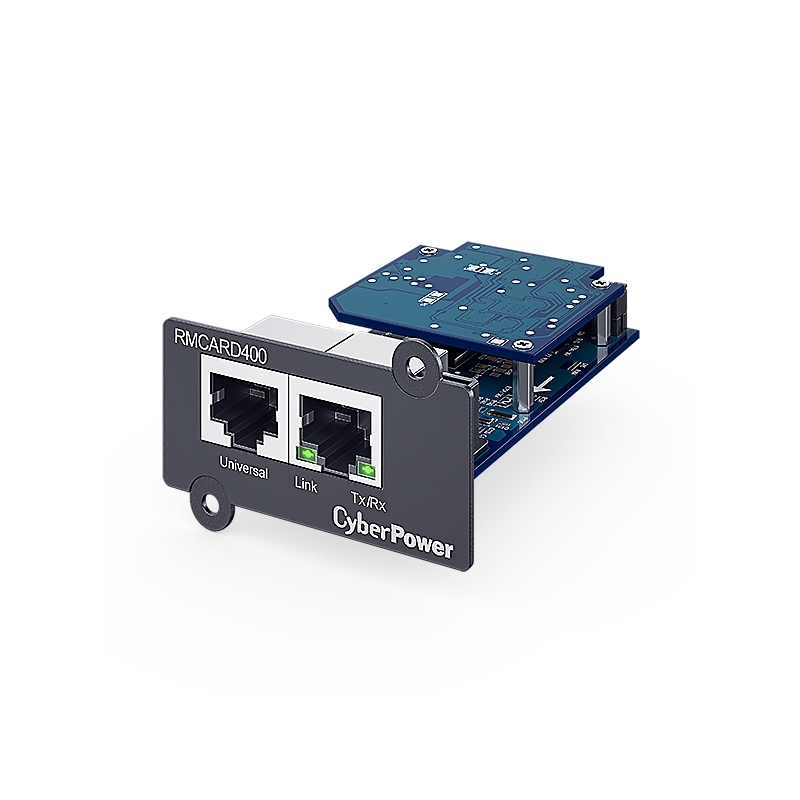

CP SNMP Card for Pro UPS

.CyberPower RMCARD400 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the SNMP/HTTP network slot on the UPS, users can remotely monitor and control the devices in a back office or server room.

Specifications:

• LED Indicators: Tx/Rx, Link
• Connectivity Port: RJ45, RJ45 (for Environmental Sensor)
• Data Link Protocol: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
• Support Plug-and-play Installation: Yes
• Power Management Software: PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)
• User-upgradeable Firmware: Yes
• Remote Management: Web Browser, Command Line Interface, NMS
• Local Management: Web Interface, Command Line Interface
• Event Notifications: E-mail, SNMP Traps, Syslog, SMS
• Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SMTPS, SSH, SSL, TLS, Telnet, FTP, SCP, Syslog
• Authentication: RADIUS, LDAP, LDAPS, Windows AD, IEEE 802.1x
• Multi-language Supported: Chinese (Traditional), Chinese (Simplified), English, French, German, Spanish
• Environmental Sensor Supported: Yes
• Colour: Blue
• Dimensions: 54 x 36.1 x 76.5mm
• Weight: 48g
• Dimensions: 172 x 60 x 165mm
• Weight: 230g
• Operating Temperature: 0 – 40
• Operating Relative Humidity (Non-condensing) ( % ): 0 – 90
• Operating Elevation: 0-3,000 m
• Storage Temperature: -10 – 50
• Storage Relative Humidity (Non-condensing) ( % ): 0 – 95
• Storage Elevation: 0-15,000 m
• Certifications: CE, FCC Class A, RoHS

Features:

• High-speed Data Transmission
• User-friendly Web Interface
• Remotely Schedule Shutdown/ Start-up/ Reboot of the UPS
• Multi-language Supported
• Simultaneous Multi-User Login
• Secure Authentication
• Plug-and-play Installation
• Command Line Interface Supported
• Automatic Event Notifications
• User-upgradeable Firmware
• Syslog Supported
• Compatible with Environmental Sensor
