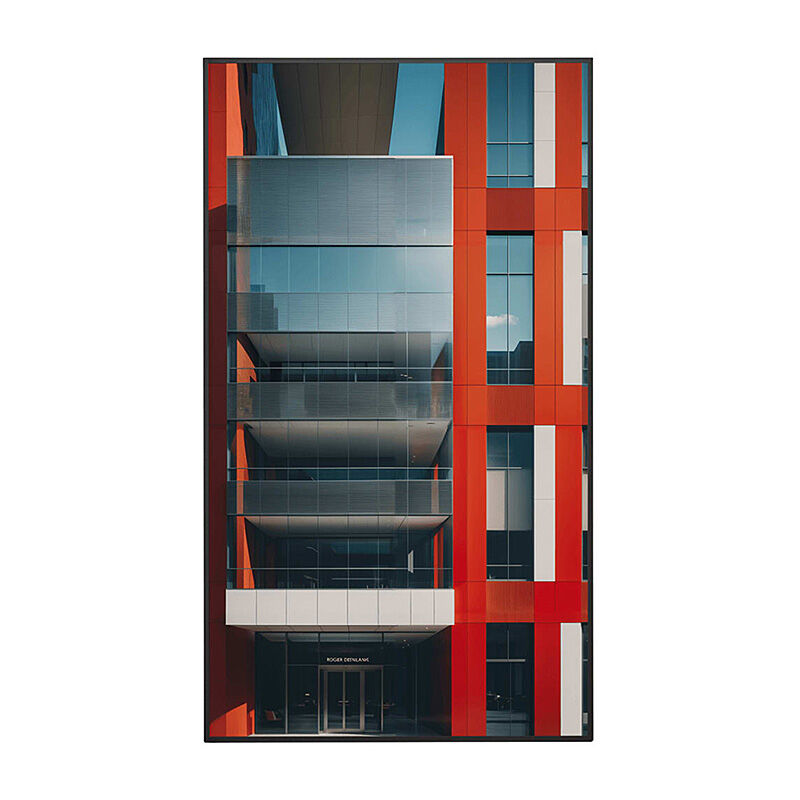

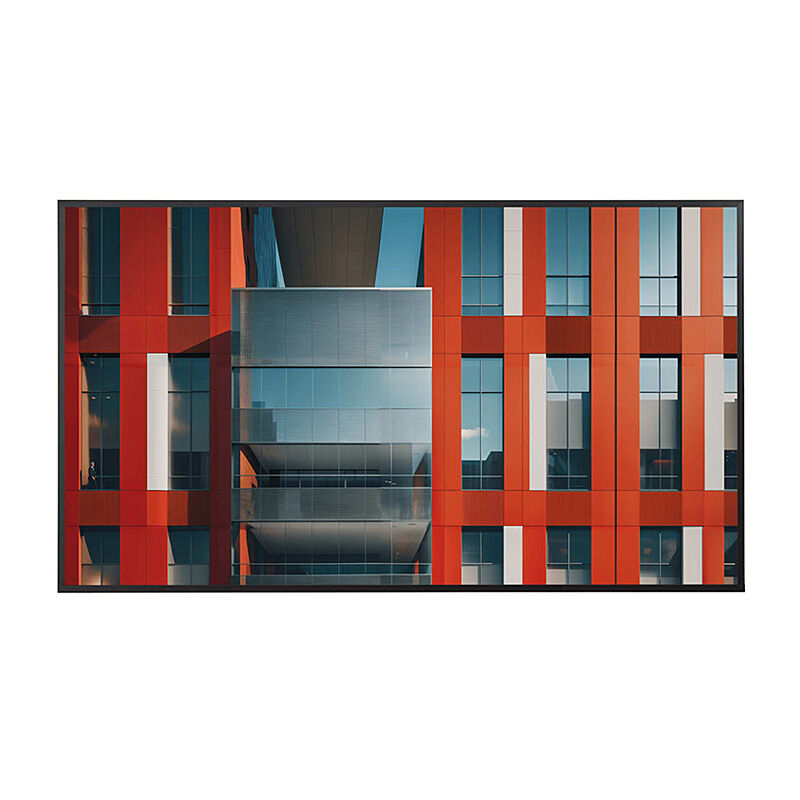

SHARP ME-series 86” Display

.SHARP Recommended for meeting rooms and signage applications. Native USB-C supports Bring Your Own Device workflows, with quick input detection. Comes with an integrated System on Chip (SoC) with Android 13 Operating System.

Features

• Seamless connectivity native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity, with a single cable connection between notebook and display.
• Best readability aiding high productivity in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources.
• Quick input detection removing potential frustration and smoothing the way to productive meeting outcomes, the display responds immediately when a device is connected.
• Third-party compatibility a flexible signage platform that supports integration with a wide range of workplace and content management systems.
• New feature-ready regular OTA Android OS updates ensure availability of the latest features and system security.

Specifications

General Information

• Panel Technology: IPS with Direct LED backlights
• Screen Size: 86 inch
• Aspect Ratio: 16:9
• Max. Brightness (average): 450 cd/m2
• Contrast Ratio: 1200:1
• Viewing Angle (H/V): 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Colour Depth [bn]: 1.073 (8bit + FRC)
• Response Time: 8ms
• HDR: HDR10; HLG; PQ
• Panel Refresh Rate (Hz): 60Hz
• Haze Level (%): 25
• Supported Orientation: Landscape, Portrait
• Supported Resolutions: 1024 x 768; 1024 x 768; 1280 x 1024; 1280 x 1024; 1280 x 720; 1280 x 800; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 480; 720 x 576 pixels

Resolution

• Native Resolution: 3840 x 2160

Synchronisation Rate

• Horizontal Frequency [kHz]: 15 – 135
• Vertical Frequency [Hz]: 23-76

Connectivity

• Input Video Digital: 1 x USB-C (with HDCP 1.3/2.2); 3 x HDMI (with HDCP)
• Input Audio Digital: 1x USB-C; 3 x HDMI
• Input Control: LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C
• Input Data: 3 x USB 2.0 (Downstream)
• Output Audio Digital: 1 x 3.5 mm jack
• Input Detect: Custom; First; Last

Electrical

• Power Consumption: 162W shipping
• Power Savings Mode: <0.5W (Normal Standby); 2W (Network Standby)
• Power Supply: 100-240 V AC; 50/60 Hz; internal

Environmental

• Operating Temperature: +0ºC to +40ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -20ºC to 60ºC
• Storage Humidity: 10% to 90%

Mechanical

• Dimensions (W x D x H): 1,931 x 1,102 x 68 millimetre
• Weight: 42 kilogram
• Bezel Width: 15.9 millimetre
• VESA Mounting: 4 holes; 800 x 600 (FDMI); M8
• Ingress Protection: IP5x (front); IP5x (back)
• Packaging Dimensions (W x H x D): 2,110 x 1,247 x 225 millimetre
• Packaging Weight: 63 kilogram
• Colour Bezel: Pantone (Process Black M)
• Material: Metal

Media Player

• Supported File Storage / File System: FAT16 / FAT32 @ USB 2.0
• Supported Video Formats: MKV (Mpeg1/2/3 Layer1/2/3, max res 4096×2160@60fps); MP4 (Mpeg1/2 Layer1/2/3, H.264, HEVC/H.265, max res 4096×2160@60fps)
• Supported Audio Format: .mp3 max. Bit Rate 320 kbps

Embedded Computing

• System Version: Android 13
• System Memory: 4G RAM
• Internal Storage: 32GB ROM
• Built-in Applications: File Manager; Web Browser

Other Features

• Safety and Ergonomics: BSMI; CE; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
• Audio (Speakers): Integrated Speakers (10W + 10W)
• Shipping Content (Accessories): 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
• Security: Disable HW Buttons, Disable IR Functionality
• External Control: AMX NetLinx Support, ASCII Control Commands, Crestron Connected, HDMI CEC, Scheduled Timer,
• Remote Management: Automated Email Alerts, NEC NaViSet Administrator 2
